3×3 NaI(TI) scintillation detector
Place of origin：China
Type：76B76/3M-E2
Product details
Description : NaI(Tl) scintillation detector
Scintillation crystal : NaI(Tl), Ø76x76 mm.

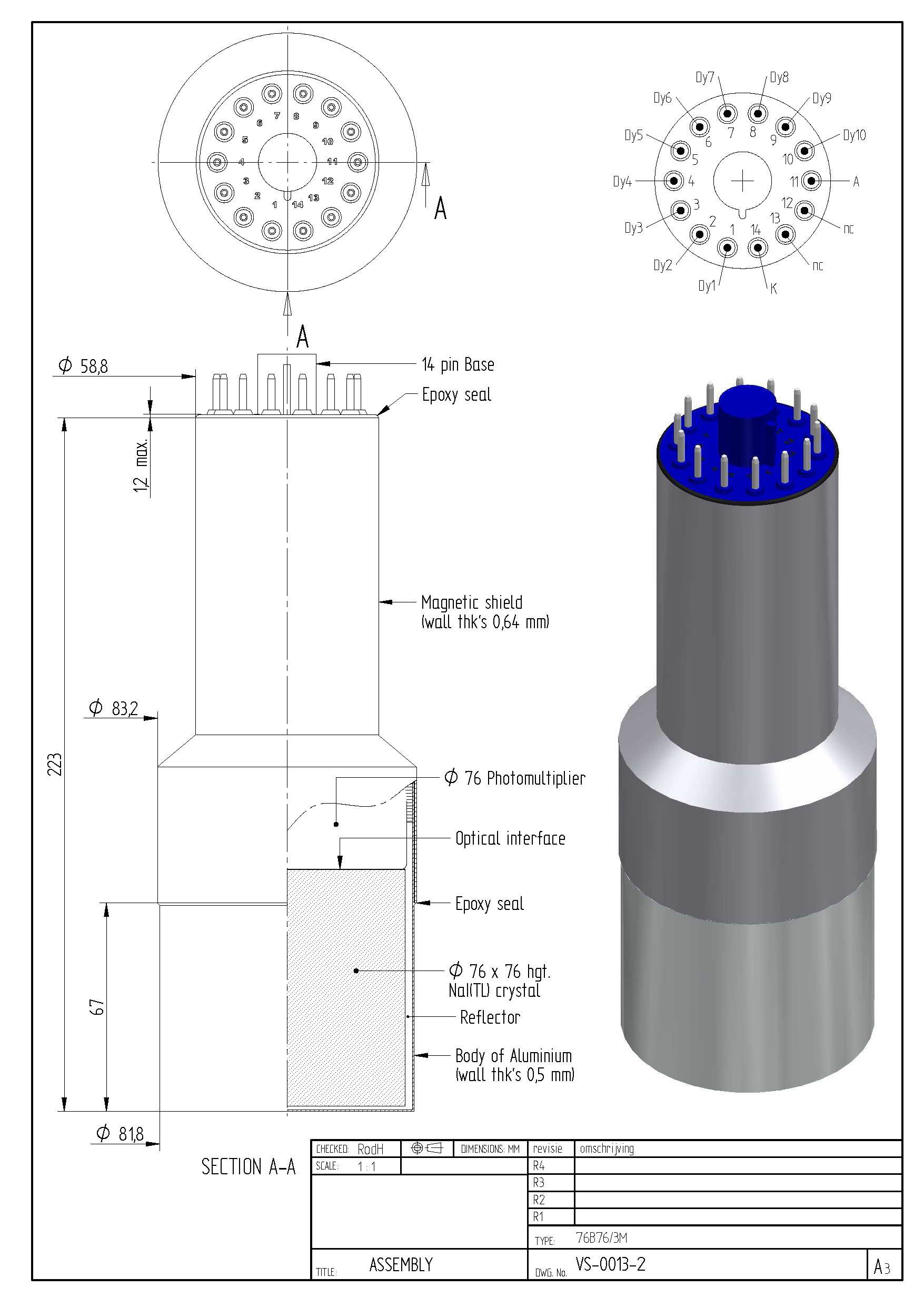

Drawing : VS-0013-30.
Crystal read out ：Ø76 mm, ETL 9305.
Dimensions : Length : 258 mm.
Diameter : 59 mm.
Electronics ： 50 Ω buffer amplifier.
Connections : High voltage SHV.
Signal BNC.
Preamp power LEMO 0S 302CLL.
Power requirements : ± 12V
Resistor chain : 5.6 MΩ
Temperature range : -20 °C to +70 °C.
Performance
Output impedance ：50Ω
Output pulse polarity : Positive.
Pulse rise time : Approx. 0.5 µs.
Pulse fall time : 50 µs positive.
Maximum signal height：± 10V
Energy resolution : < 7.5% FWHM @ 662 keV
Gain stability : < 1% over 24 hours at 20 °C
Typical High Voltage : 600 to 800 V
