Ⅰ. Product Introduction

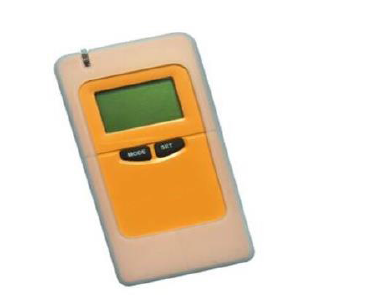

TK-207 is a quite sensitive card-type personal neutron dosimeter in the world, developed by Beijing Tai Kun Industrial Equipment Co.,Ltd. It utilizes 6LiI (Eu) scintillator, albedo technology to detect neutron dose. With IR communication, related reader and software, can realize multiple personal dose management.
Ⅱ. Main Features
l High sensitivity 6LiI (Eu) scintillator neutron detector
l Used in turns, maximum for 10 people, cost-effective
l Simultaneously displays both accumulated dose and dose rate
l Audible, visible and vibrative alarm simultaneously or selective
l Alarm threshold is continuously adjustable
l Infrared interface allows instant communication with PC
Ⅲ.Technical Specifications
Item | Parameter |
Detector | 6LiI(Eu) scintillator |
Dose Range | 0.1μSv~10Sv |
Dose Rate Range | 1μSv/h~100mSv/h |
Gamma rejection ratio | ≥10:1(10 mSv/h, 137Cs) |
Energy Range | 0.025 eV~14 MeV |
Angular response | ≤±30% (0°~±60°@ 241Am-Be) |
Relative Error | ≤±15% , (10μSv/h~100mSv/h@ 252Cf) |
Response time | ≤5s |
IP Rating | IP67 |
Temperature | -10°C~50°C |
Power Supply | one AAA battery (≥50 hours) |
Weight | 95g (with battery) |
Dimensions | 110×55×15(l×w×h)(mm) |
Communication | IR |
Ⅳ. Applications
l Monitoring personal neutron dose at nuclear power plants, nuclear reactors, particle accelerators, hospitals, oil
l well logging, industrial flaw detection, etc.
l Emergency alarm and inspections of policeman, fireman, customs officers and security guards.
